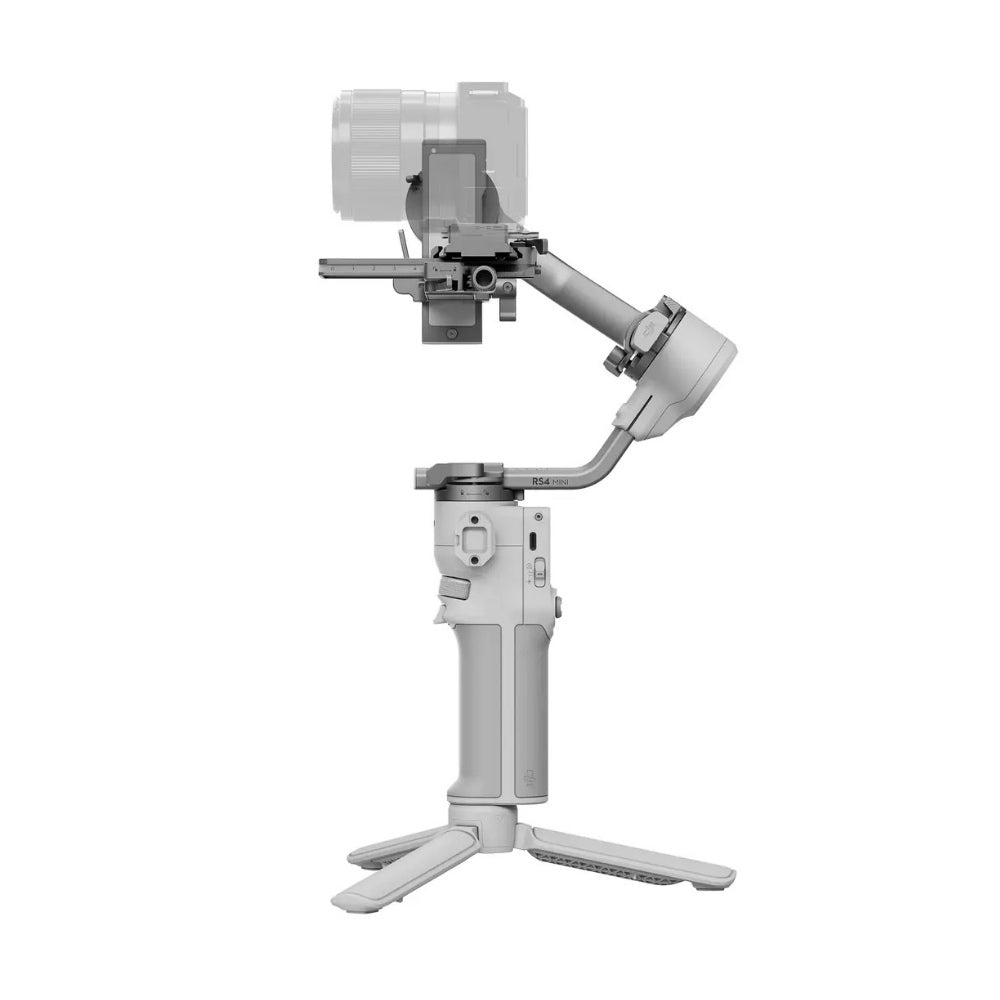

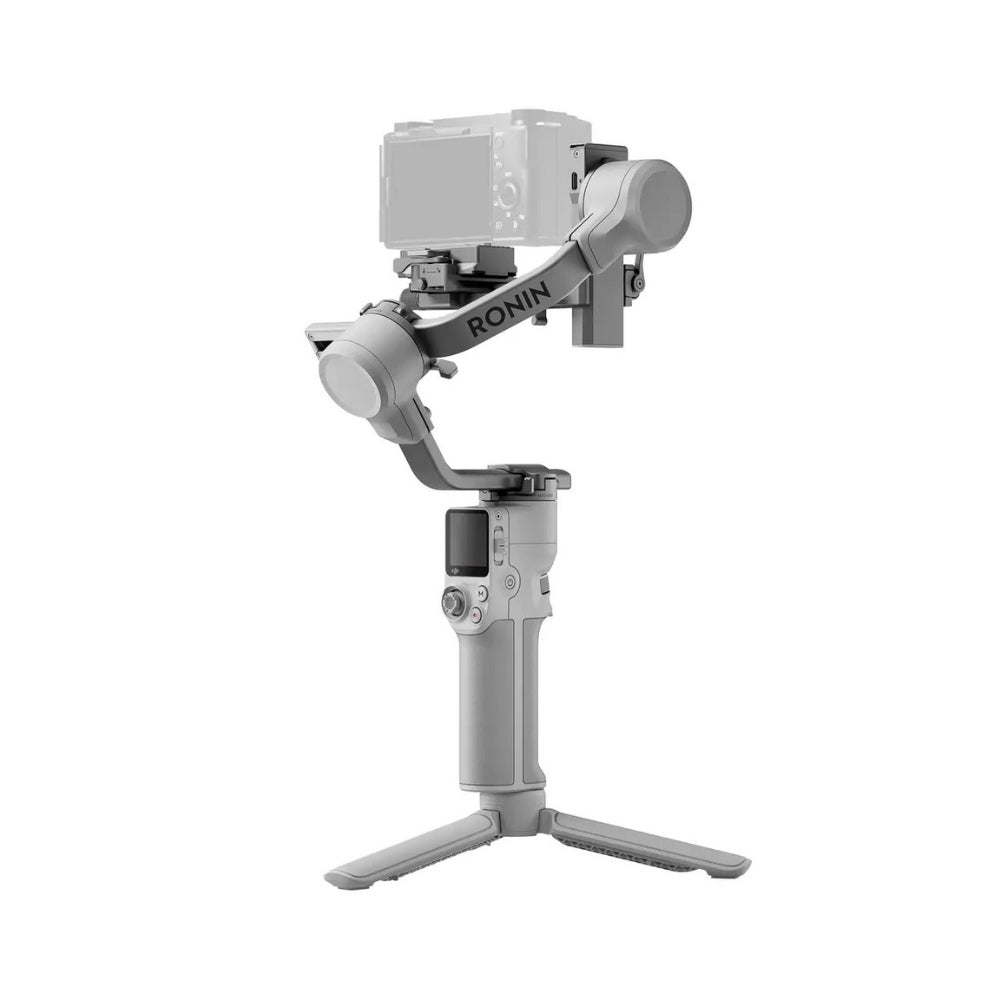

DJI RS 4 Mini Gimbal Stabilizer

$345.00

Sale Sold out

2nd-Gen Automated Axis Locks
Intelligent Tracking and Composition
Teflon™ Enhanced Balancing
3rd-Gen Native Vertical Shooting
Responsive Follow Mode
Handles Cameras and Smartphones

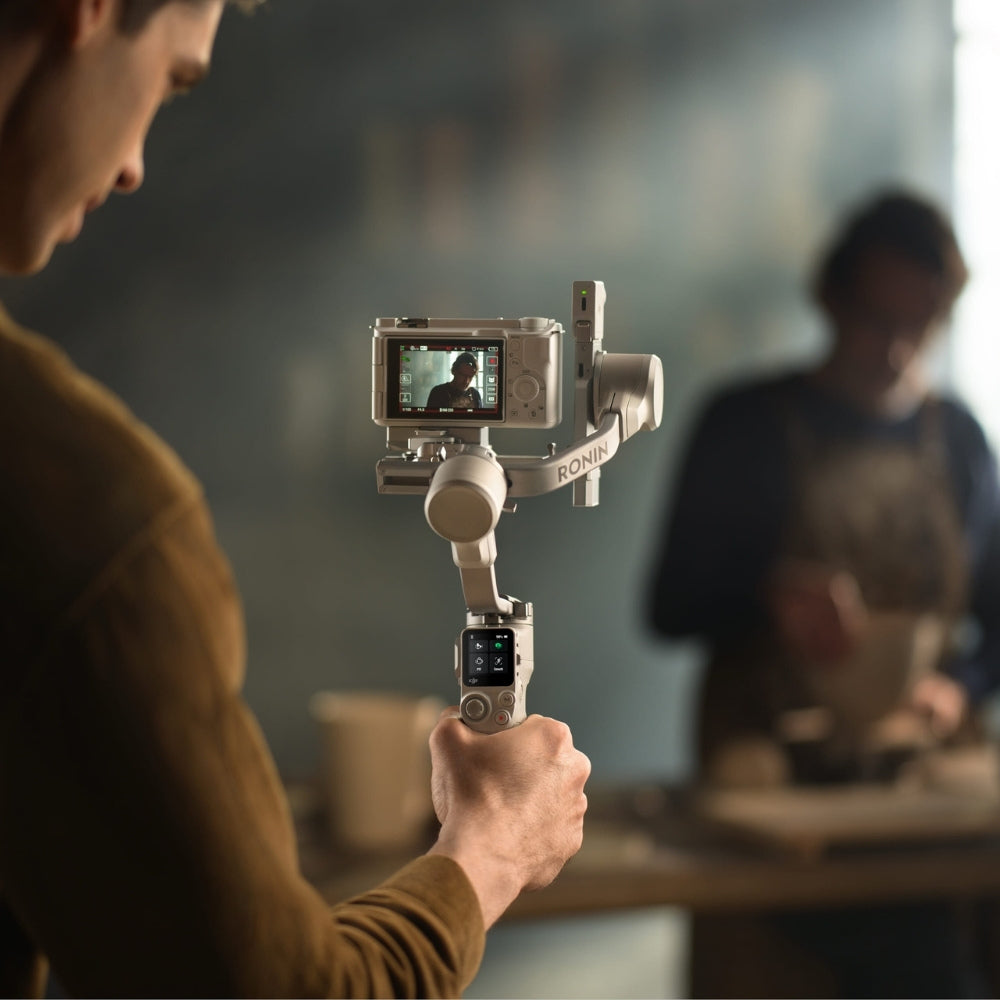

Introducing DJI RS 4 Mini, the all-new compact and lightweight gimbal for content creators. Featuring automated axis locks, intelligent tracking and composition, Teflon™ enhanced balancing, and 3rd-gen native vertical shooting, it empowers content creators and independent commercial videographers to roll with it in a more efficient and seamless filming experience

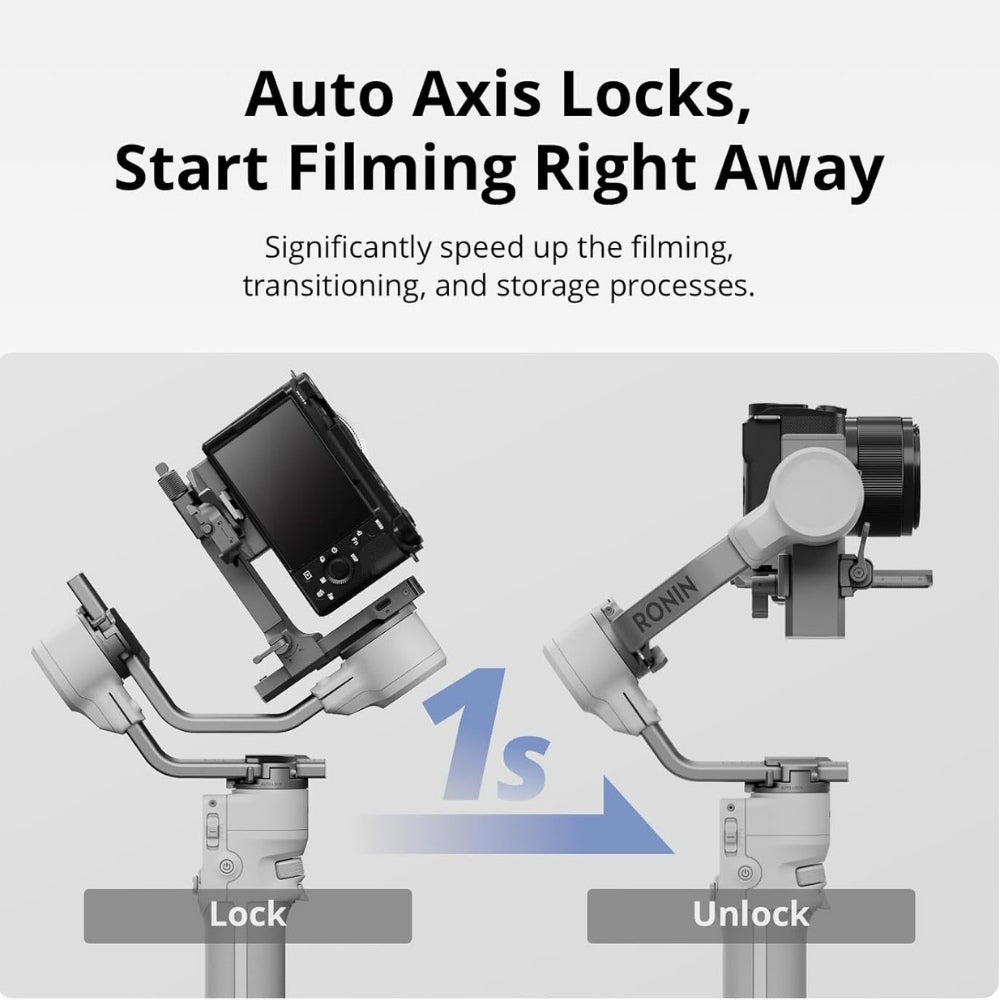

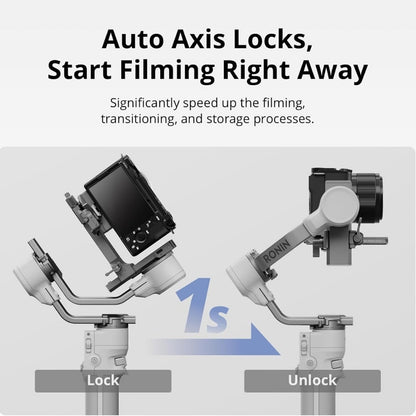

2nd-Gen Automated Axis Locks

Newly added axis locks speed up the filming, transitioning, and storage processes. Axis arms fold flatter to save space, making it easy to fit into a bag for convenient carrying

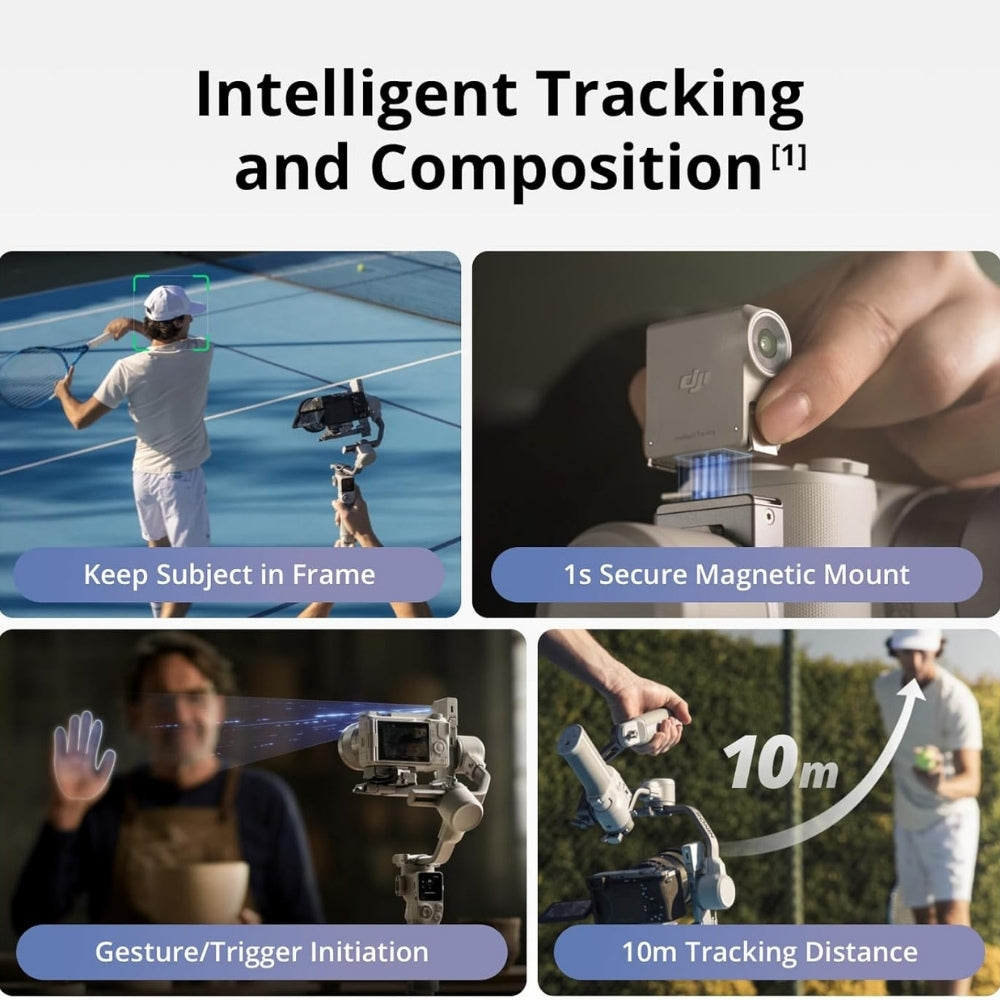

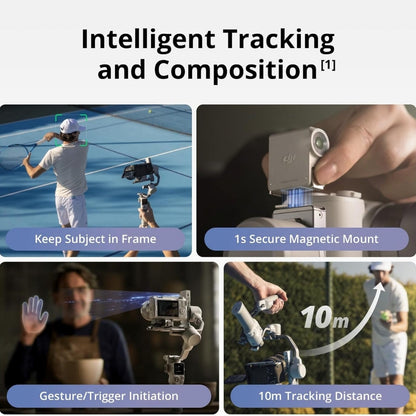

Intelligent Tracking and Composition

The new DJI RS Intelligent Tracking Module keeps the human subject in a consistent position within the frame, particularly useful for orbit shots, backward tracking, and fixed-position tracking

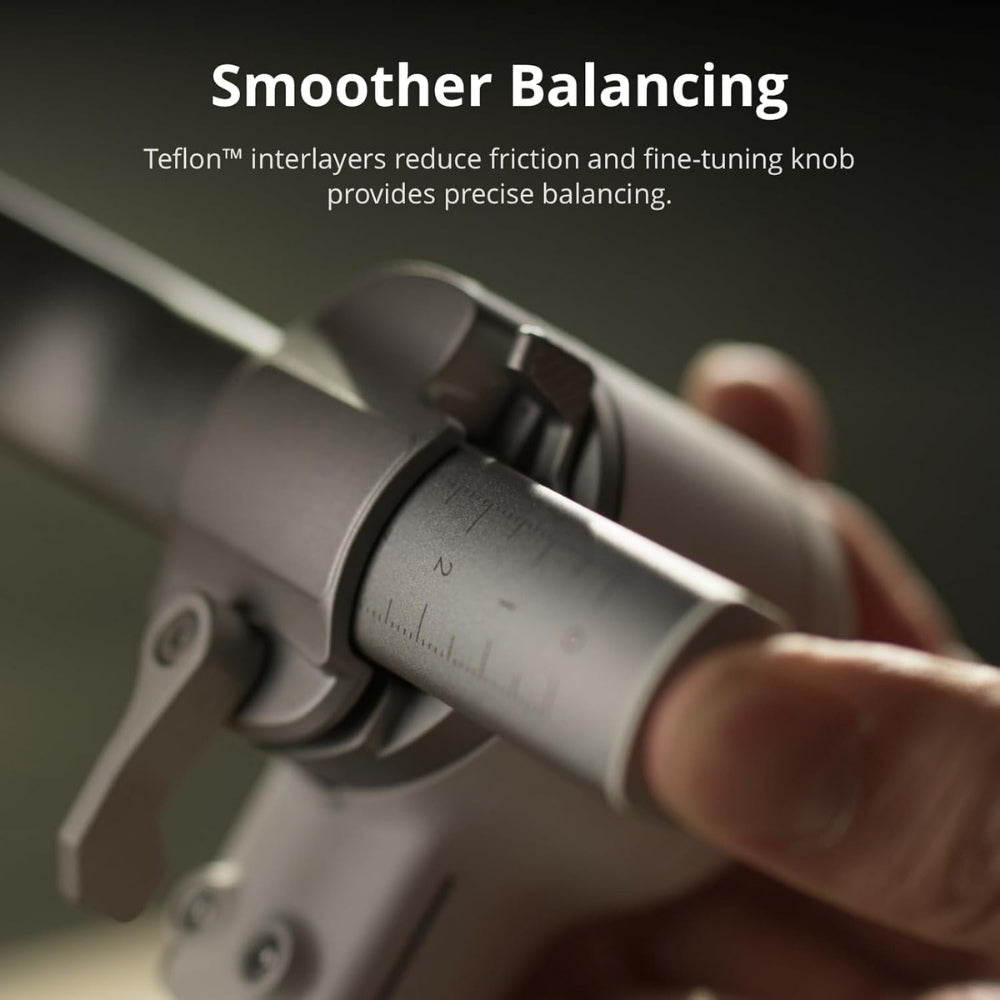

Teflon™ Enhanced Balancing

Previously used on DJI's flagship gimbals, Teflon™ interlayers reduce friction for smoother balancing

3rd-Gen Native Vertical Shooting

RS 4 Mini offers the fastest switch between horizontal and vertical shooting in the RS series. All can be done in 10 seconds, perfectly suited for mobile phone viewing

Responsive Follow Mode

In the new Responsive mode, the gimbal responds faster to hand movements upon start and stop, useful for fast orbit shots. It also retains DJI's classic Smooth follow mode

2kg/4.4lbs Payload for Camera and Phone

It supports a wide range of mainstream mirrorless cameras and lens combinations, lightweight vlog cams, ^[5] and phones with the new Phone Holder, ^[1] seamlessly adapting to different scenarios

Specs

Accessory Port

NATO Port

1/4"-20 Mounting Hole
RSS Camera Control Port (USB-C)
Pogo Pin (compatible with the DJI RS Intelligent Tracking Module)

Battery

Type: LiPo 2S
Capacity: 3100 mAh
Energy: 22.32 Wh
Max Runtime: 13 hours (stationary) *
Charging Specification: 9 V/2.5 A
Charging Time: Approx. 1 hour and 50 minutes **
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

* Measured with the equipment in a level and stationary state and the gimbal balanced. When the gimbal is in motion, the operating time will be reduced.
** Tested in a 25° C (77° F) environment while using a 30W charger.

Connections

Bluetooth 5.1
USB-C Charging Port

Ronin App Requirements

iOS 14.0 or above
Android 9.0 or above

Languages Supported by the Touchscreen

English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload
0.4-2 kg (0.88-4.4 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +235°
Tilt Axis: -110° to +210°
Axis Locks
Auto
Vertical Shooting
Supported

Mechanical & Electrical Properties

Operating Frequency
2.4000-2.4835 GHz
Bluetooth Transmitter Power
< 4 dBm
Operating Temperature
-10° to 45° C (14° to 113° F)
Weight
Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod)
Extended Grip/Tripod: Approx. 140 g (0.3 lbs)
Dimensions
Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate)
Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate)

Accessories

DJI RS Intelligent Tracking Module

Weight: 19 g
Dimensions: 33.5×17.5×38.5 mm (L×W×H)
Tracking Distance: 0.5-10 m
Operating Environment: Illuminance > 20 lux
Trigger Modes: Gimbal trigger, gesture
Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment
Power Consumption: < 1 W
Operation Temperature: -10 to 45° C (14° to 113° F)
Mounting Method: Magnetic attachment

DJI RS 4 Mini Phone Holder

Weight: 92.5 g
Dimensions: 50×48×95.15 mm (L×W×H)
